Yoswit Radar Sensor (Triangle) 24G

${{ no such element: frappe.website.doctype.website_slideshow_item.website_slideshow_item.WebsiteSlideshowItem object['web_item_name'] }}$

Yoswit Radar Sensor (Triangle) 24G

Product Code: YO205DC (R2W)-24G

Features:

Seamlessly Integrates with RCU
Accurate Detection
Synchronized Sensing Technology
Precise Range Measurement
Adaptability and Penetration
Embedded and Triangle Installation Options
Wireless Installation
Customizable Parameters

Radar Sensor Detects Human Presence, Ensuring Seamless Responsiveness in Your Living Space.

Features

Seamlessly Integrates with RCU

Yoswit Radar Sensor seamlessly connects with the RCU, enabling centralized control of your smart home environment, including lighting, temperature, and curtains, all through the Yoswit app. It's a hassle-free way to create a personalized, comfortable environment with just a few taps on your phone.

Accurate Detection

Leveraging its millimeter wave radar sensing module, it nails human movement and static presence. Whether someone's walking across the room or sitting still, it spots them. This precision is crucial for security, energy-saving in smart homes, and triggering automated functions right when needed.

Synchronized Sensing Technology

Employing this technology, the sensor captures Doppler parameters and human physiological data, allowing it to wirelessly perceive human status in real-time. By analyzing these details, it can determine if a person is awake or asleep, enabling smart devices to interact intelligently with their environment.

Precise Range Measurement

This sensor stands out for its precision in distance measurement, capable of detecting even the slightest movements, such as breathing and heartbeat. Its precise distance measurement allows your smart home to respond effectively to various situations, enhancing safety and security.

Adaptability and Penetration

With outstanding adaptability and penetration capabilities, it functions reliably in different room layouts. Whether in a crowded room or behind obstacles, this sensor maintains its performance, ensuring reliable detection and monitoring.

Embedded and Triangle Installation Options

It works well with all kinds of mailboxes, from traditional to modern. Its adaptable nature allows for easy installation and seamless integration. No matter your mailbox style, it's the perfect match.

Wireless Installation

Say goodbye to complicated wires. Its wireless setup makes installation easy. Place it anywhere without worrying about cable routing. Whether retrofitting an old building or creating a new smart space, enjoy the freedom to position the sensor wherever it’s needed, free from the constraints of traditional installations.

Customizable Parameters

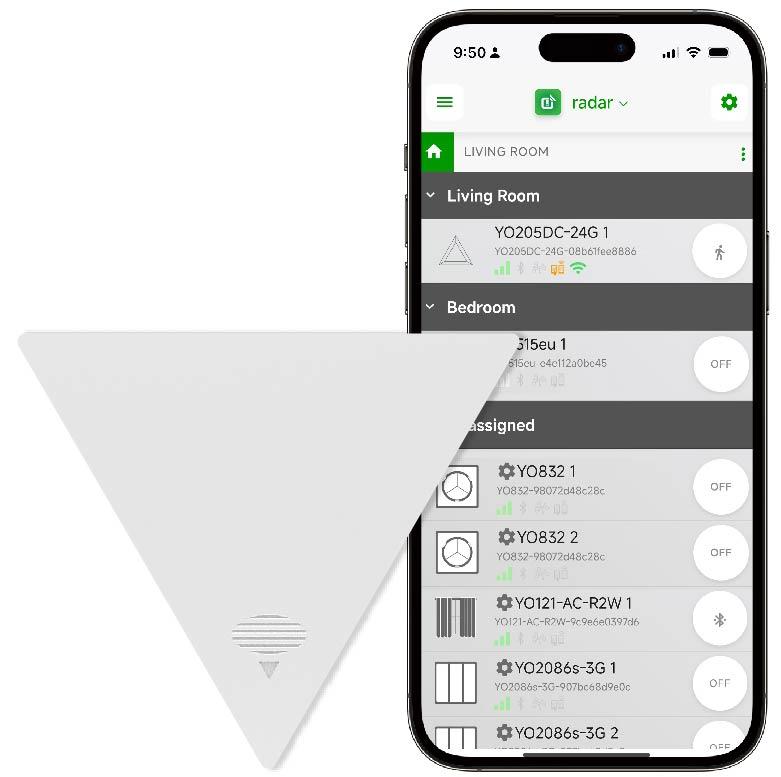

Via the Yoswit app, tweak distance sensitivity and delay to your liking. Tailor the sensor's behavior to each unique space and activity for optimal performance.

Run Your Home from Your Phone

Mobile As Hub

Voice Control

Mesh-like Network

Remote Control

Room and Scenes

Away Detection

Schedule Timers

Password Protection

IFTTT

App Store

Android App

Bluetooth Version

We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.

Compatible Devices

We support all Smart Ready products with our application installed. Please Click Here to get the growing list.

IOS Support

We support iOS 13.0 or later.

Android Support

We support Android 7 or later.

General
Product Name	Yoswit Radar Sensor (Triangle)
Model	YO205DC (R2W)-24G
Revision	V1.0
Compliance	CE, FCC, RoHS
Manufacturer	Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China

Dimensions
Product Size

Mechanical
Operation Temperature	-20°C to 85°C
Operating Humidity	0-95%RH, Non-Condensing
Operating Environment	Interior
Operation	APP
Ingress Protection (IP)	20

Electrical
Operation Power	DC12V±10%
Power Consumption	≤1W
Output	Dry Contact

Wireless
Frequency	2.4GHz
Bluetooth Range	Open Area: >50m / Interior: 3-20m
Connection	Wifi 2.4G / BLE 4.2

Radar
Frequency	24GHz
Detection Angle	Horizontal ±60°, Tilt ±60°
Detection Range	≤6m

WARNING !

Disconnect Power

To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.

Basic Installation

Installation - LED Power Stabilizer (Optional)

Installation complete.

Download the Yoswit App and enjoy it now!

Yoswit will automatically detect the switch and add to your device list.

Downloads
Certification	CE EMC CE LVD FCC RoHS
User Manual	Download Download(SC)
Data Sheet	Download
Leaflet	Smart Light Switch Full Catalogue Catalogue (ZH)
Yoswit App
Yoswit App (Android Apk)	Download
